Oil & Gas: CAD Drafting, Redline Drafting, As-built Backdrafting & Design Services by Eng-Source in Calgary

Oil & Gas: Redline, as-built & drafting services for clients in Calgary, Edmonton, Red Deer, Medicine Hat, Grand Prairie & Fort McMurray

Redline Drafting
- Updates to drawings based on redline markups
File Type Conversion
- File type conversions when updating or changing software
- AutoCAD, CADworx, Microstation, Plant 3D, AutoPLANT, PDMS, ProCAD, etc.
2D to 3D Conversions
- 2D drawings to 3D models
- Faster & more cost-effective than PointCloud
- Operations will love it
Instrumentation from P&ID’s
Civil Details
- Give us your skid/building details and we’ll complete them
Drawing Updates
- We can update your old drawings
- Bring your drawings into the 21st century
Acquisitions
- Update the drawings of acquisitions to match your inhouse formatting and layout standards
Field Changes
- Submit field changes for design

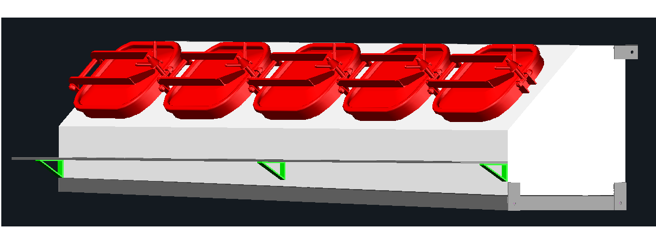

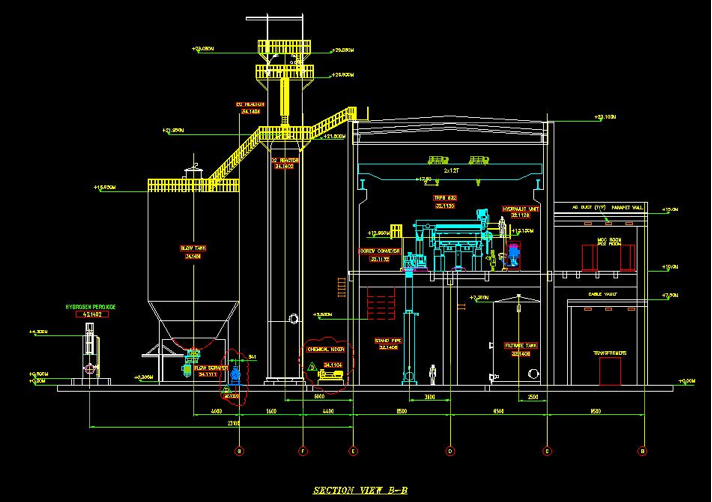

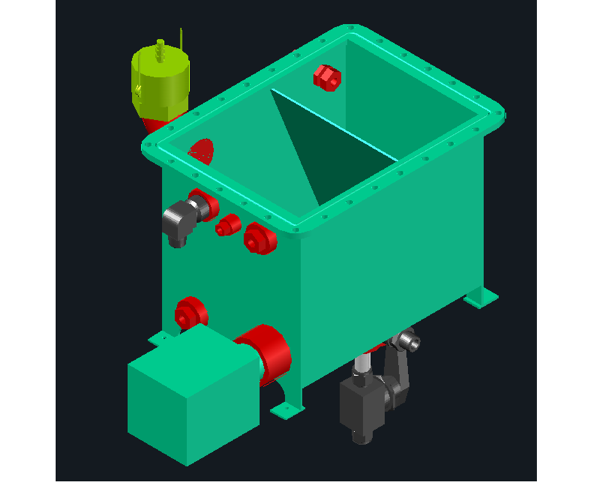

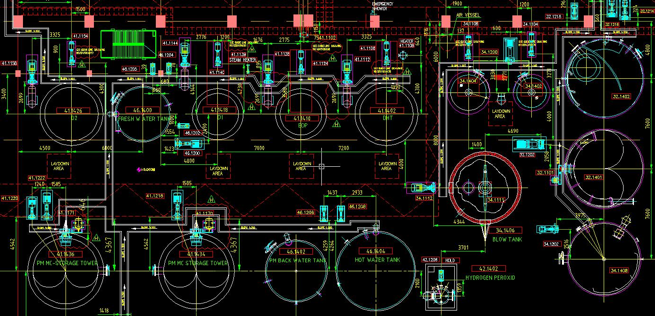

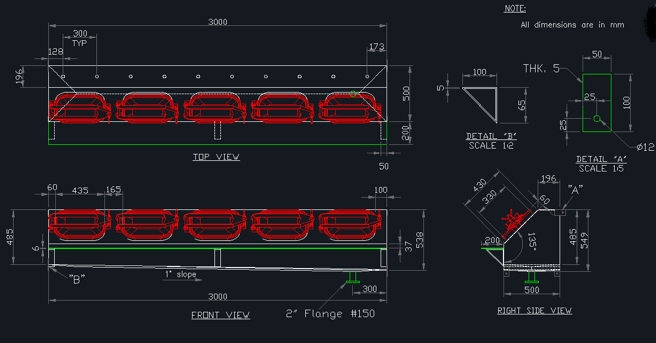

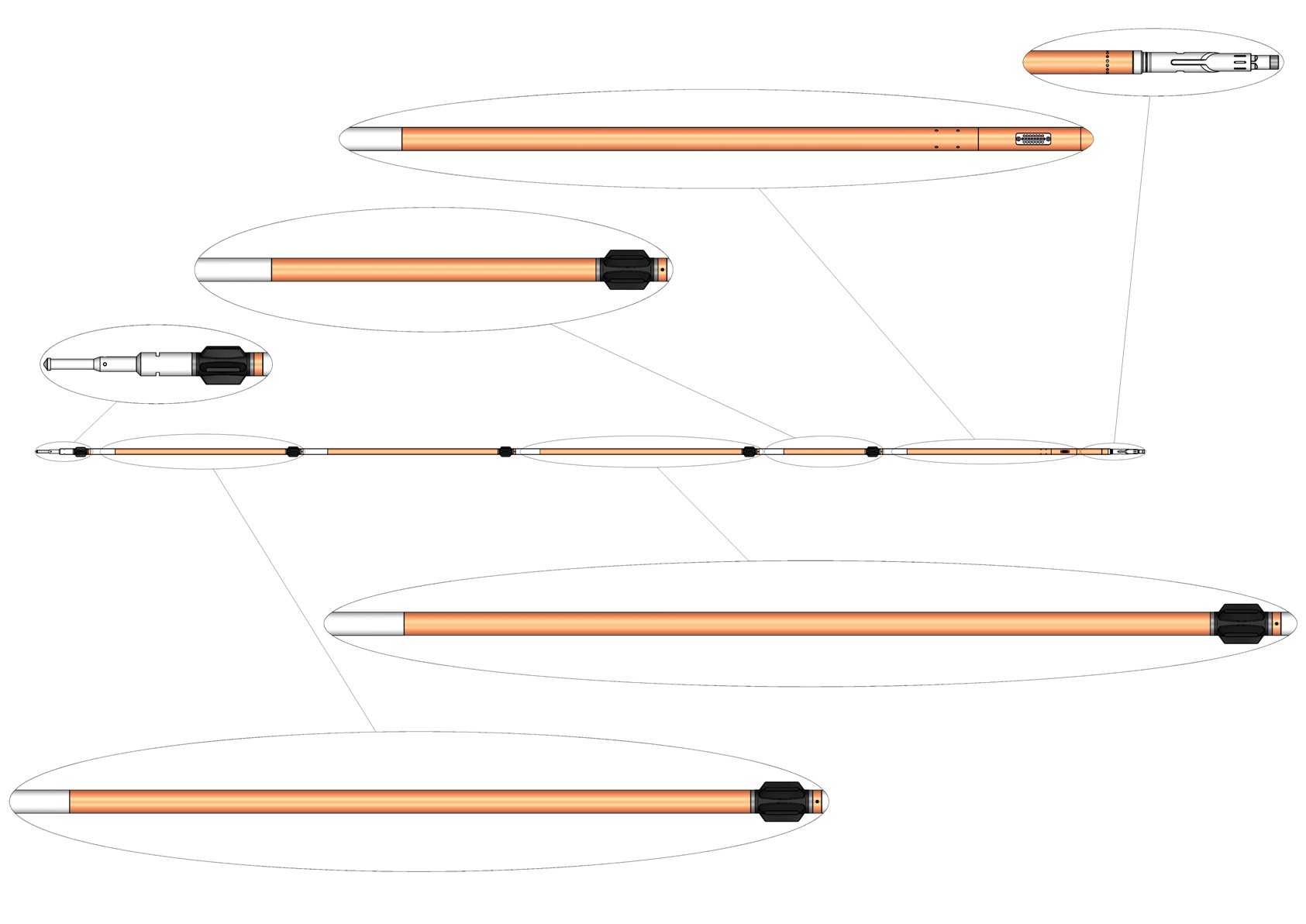

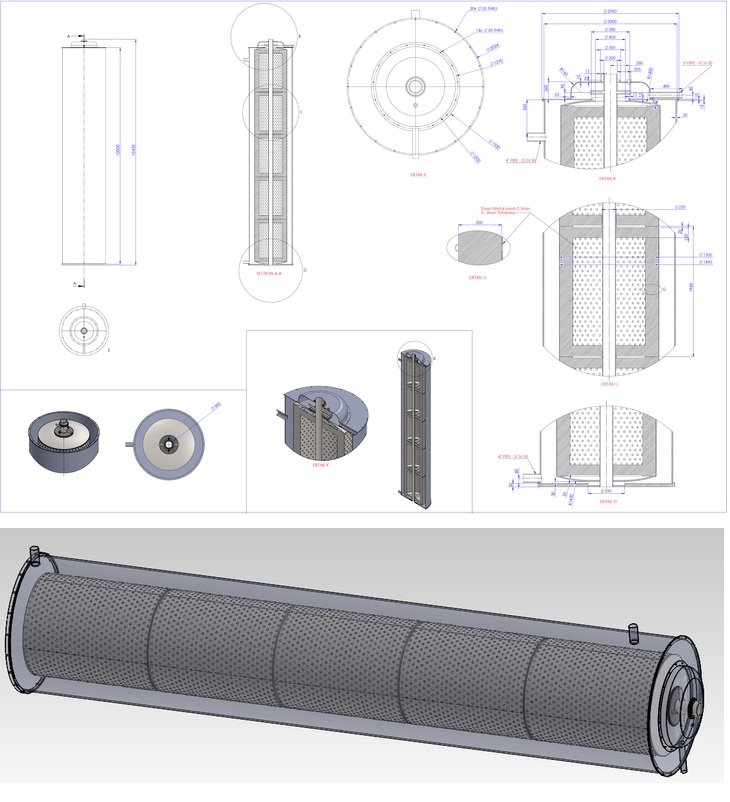

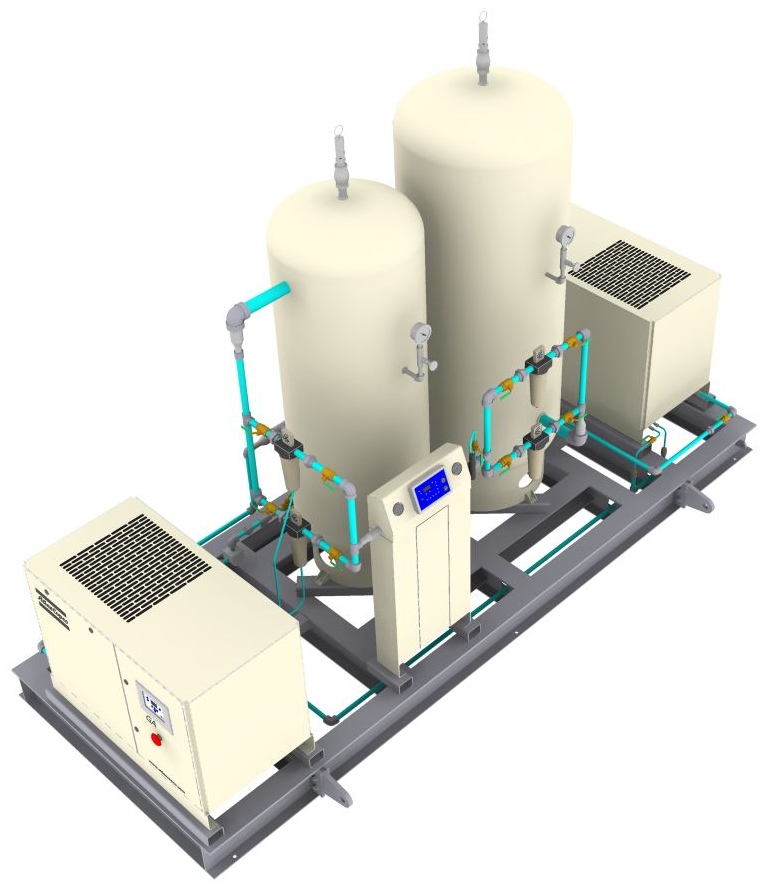

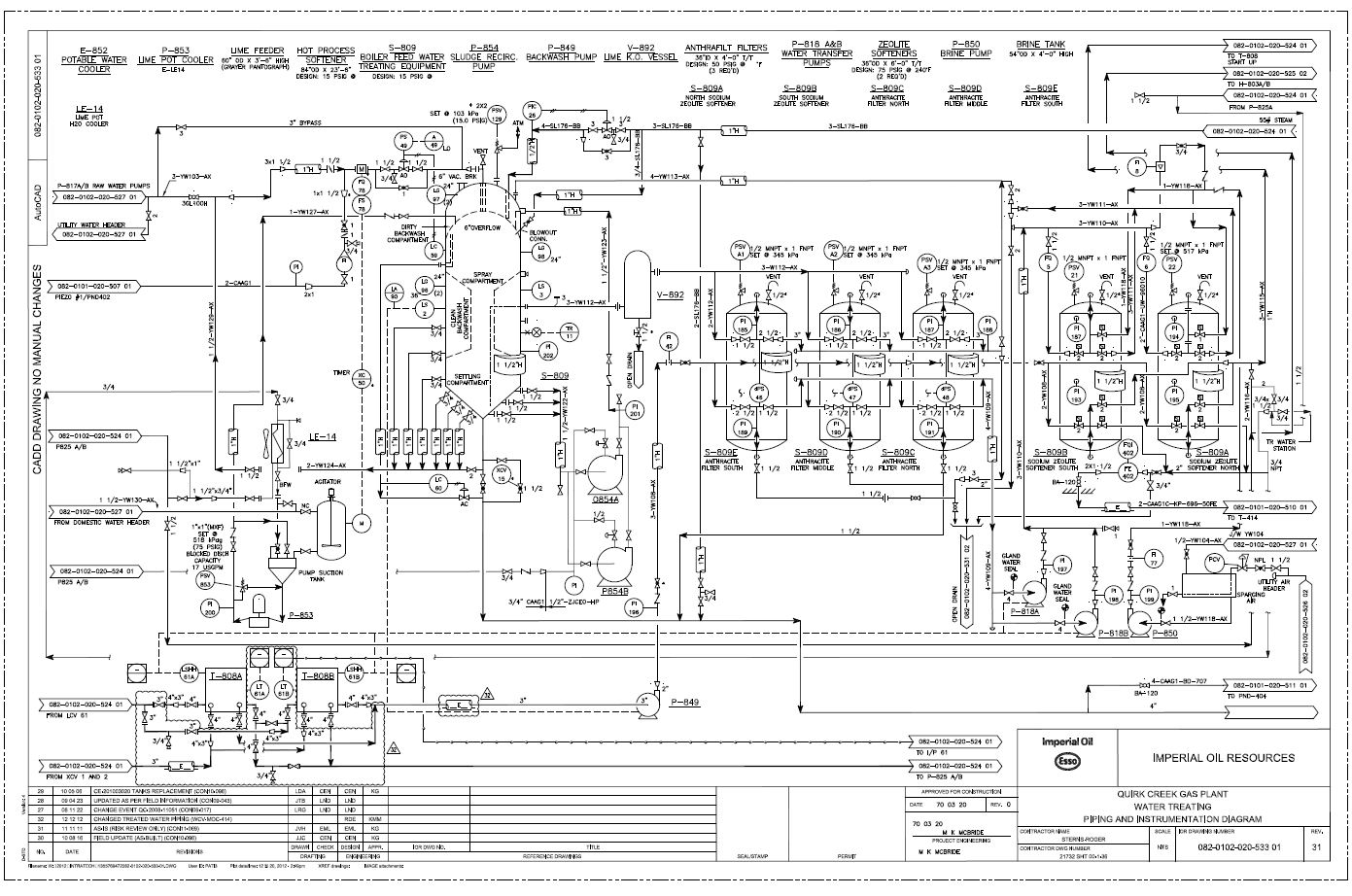

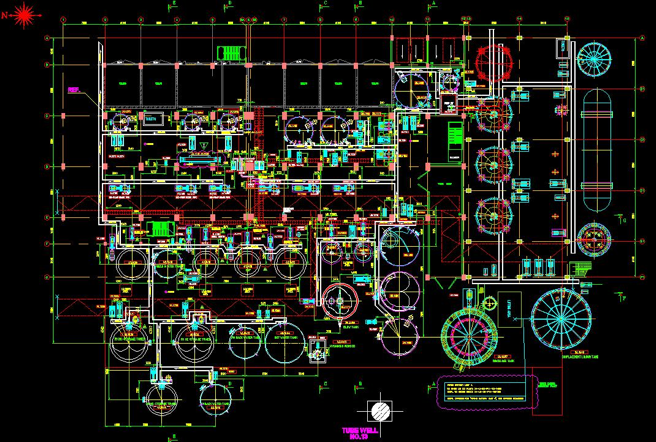

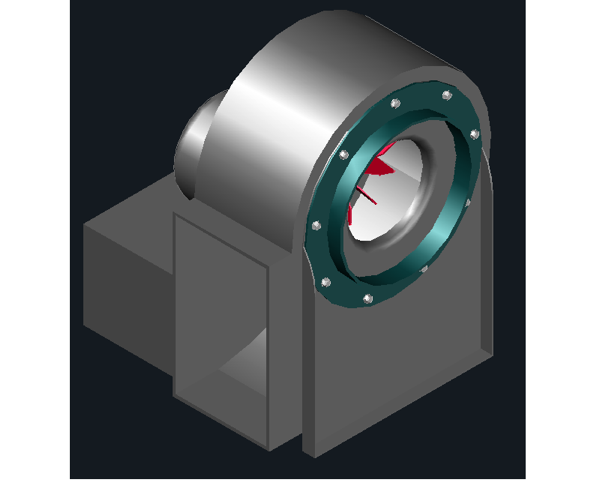

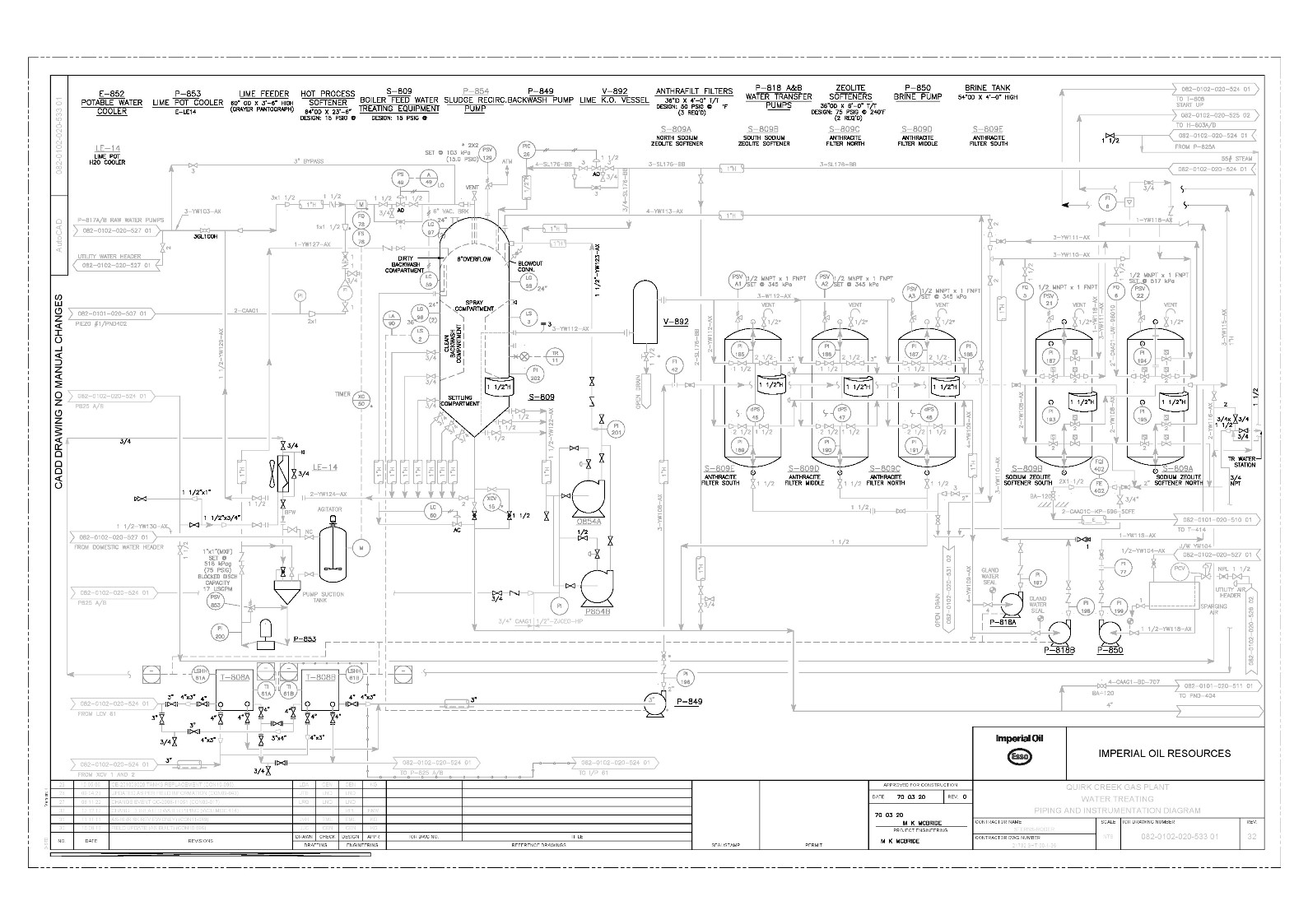

Oil & Gas: Drafting & Design Services Examples for Clients in Calgary, Edmonton, Fort McMurray, Medicine Hat, Red Deer & Grand Prairie

Why Eng-Source? Eng-Source can help you increase your company’s engineering horsepower with our global network of expert contractors. Our expertise includes CAD design and drafting but we also have the ability to finish projects for 3D modelling, photorealistic 3D rendering, building envelope design, floor plans, customized millwork and shop drawings services.

What makes Eng-Source stand out is the fact that we have a deep pool of expert engineers, designers and drafters can help with your project from start to finish. Our network of experts have licenses for all mainstream CAD software like AutoCAD, SolidWorks and CATIA. No matter no matter the project, our group of engineering, drafting or design contractors can help with your project.
